3V 5V Mini Reduction Gear Motor 12mm N20 Gear Motor Planetary Reduction Gearbox Low Noise
Product Overview

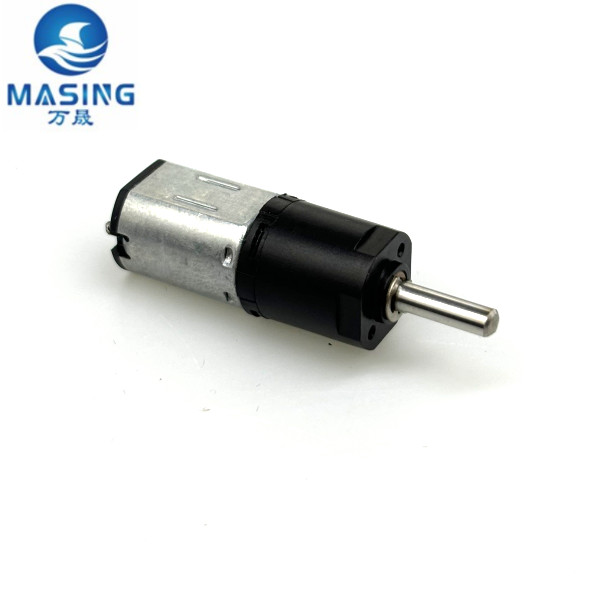

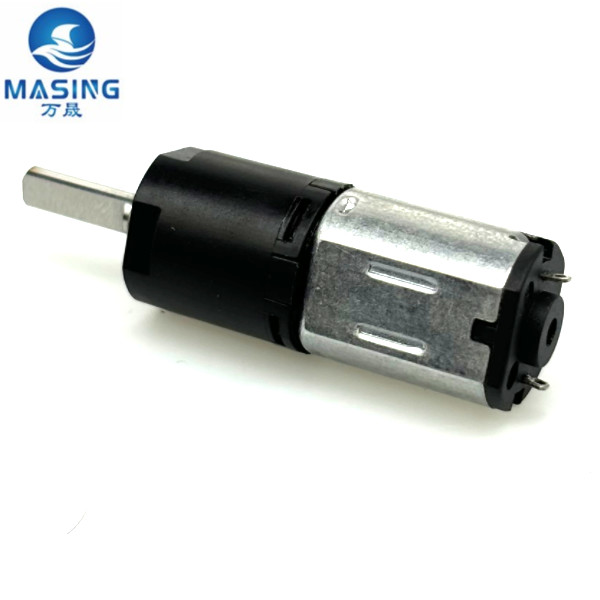

DC Planetary Gear Motor 12mm 3V 5V Mini Reduction Gearmotor N20 gear motor with encoder Planetary Reduction Gearbox. 12mm plastic gearbox with FF-N20 micro DC motor. N20 DC motor plastic planetary gear 12v electric motor for door-lock applications.
Key Features
- High Efficiency and Performance: 70% efficiency for optimal performance in various applications
- Low Noise and High Torque: 0.5-2.0kg.cm torque with minimal noise operation
- Customizable Options: Various diameter options and customizable colors
- Durable and Long-Lasting: Totally enclosed design with permanent magnet construction
- Optional Encoder Available: Optical encoder for accurate speed control and position feedback
Technical Specifications
Speed: 5-1000 rpm
Continuous Current: 20-300mA
Efficiency: 70%
Type: Brush DC Motor
Torque: 0.5-2.0 kg.cm
Construction: Permanent Magnet DC Planetary Gear Motor

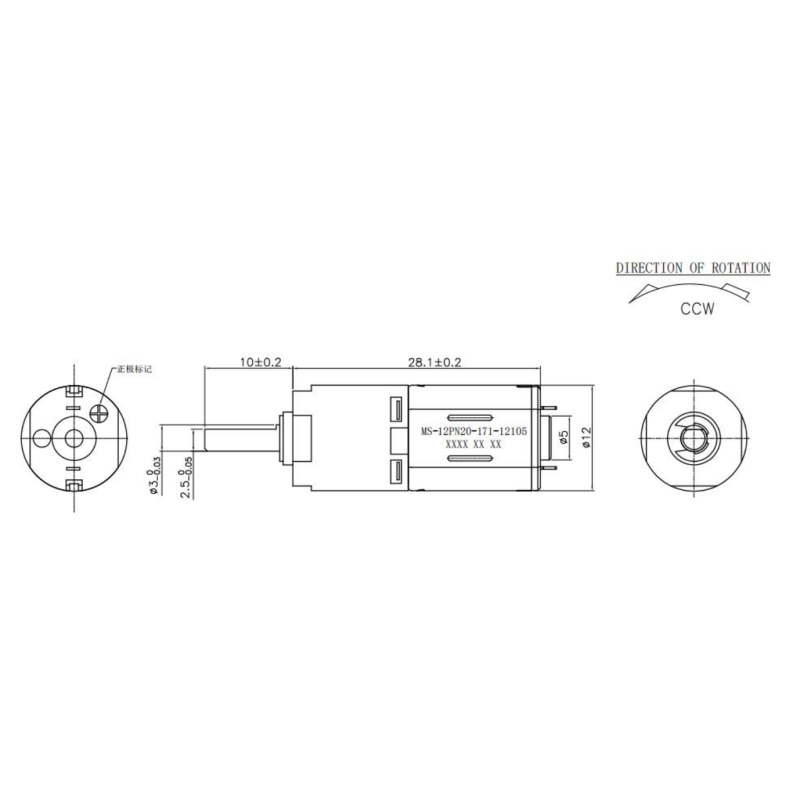

Diameter: 12mm
Weight: 20g
Noise: ≤55DB
Protection: Totally Enclosed
Encoder: Optical Encoder (Optional)
Color: Customer's Request
MOQ: 1000Pcs
Applications
door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument, Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication
Technical Specifications
Packaging & Delivery
Packaging: Strong Carton 400pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37×27×24cm
Gross Weight: 10.0kg
Selling Units: Single item
Supply & Lead Time
Supply Ability: 100,000 pieces per month
| Quantity (pieces) |
1 - 100 |
101 - 1000 |
> 1000 |
| Lead Time (days) |
10 |
15 |
To be negotiated |
Samples
Maximum Order Quantity: 1 piece
Sample Price: $15/piece
Frequently Asked Questions
Q1. Are you a factory?
A: Yes, we are a factory. Main products include micro geared motors, brushless DC motors, DC motors, and DC planetary gear boxes.
Q2. How can you guarantee the quality?
A: We have 100% finished product inspection before delivery and no defective products returned.
Q3. How long is the delivery time?
A: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.
Q4. Can we test samples?
A: Yes, we have R&D and Testing Center. Customized samples and freight are charged.
Q5. How to confirm the payment?
A: We accept payment by T/T, PayPal. Other payment methods can be accepted upon request. 30-50% deposit is available, with balance paid before shipping.
